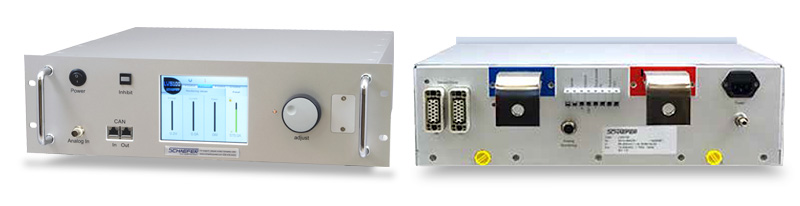

Electronic Loads LW 5100 Series

This liquid cooled load allows a wide range of operations up to 400V/750A. The small size provides high power density combined with ease of use. Wherever head and noise of fans is unacceptable, this load offers a prefect solution, e.g. laboratory or test rooms. Due to its capability to connect to modules in parallel, the power rating can be increased up to 40kW, controllable by one interface.

Product Features:
Regulation of voltage, current, power and resistance


Wide operating range up to 400V / up to 750A with one module


Paralleling of up to 4 modules for higher load capacity


Reduced water consumption depending on load power and water inlet temperature


CAN Bus interface for control and monitoring


Protected against thermal overheating


Determination of the capacity of batteries in Ah (battery tester) / “In service” test of batteries considering actual load currents by an additional current probe input


Mechanical and electrical modifications to standard modules are available. In addition, Schaefer can design and manufacture fully custom solutions. Let Schaefer be your Custom Power Supply Design Solution Partner.
