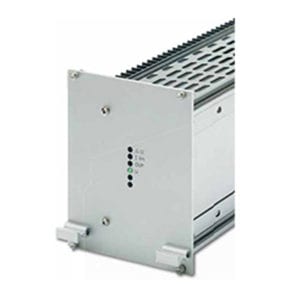

C/B 2500

Mechanical and electrical modifications to standard modules are available. In addition, Schaefer can design and manufacture fully custom solutions. Let Schaefer be your Custom Power Supply Design Solution Partner.

400W DC/DC Converters, AC/DC and Battery Chargers. DC/DC Series boasts 6 DC input ranges of 18-36, 36-75, 45-90, 80-160, 160-320 and 320-380V with 10 single output voltages ranging from 5VDC to 250VDC. The AC/DC Series offers the same range of output voltages from a power factor corrected 100-240VAC input. The Series of Battery Charges provides output voltages ranging from 12VDC to 290VDC.

Max Power: 400 W


AC Input: 1-Phase and 3-Phase 3×200


DC Output Voltage: 5-250


19″ Rack/ Module: 3U


Wallmount: Yes


Chassis: Yes


DIN-Rail: Yes


Cooling/Product Features: Natural Convention
