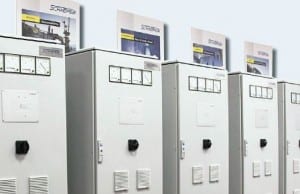

Thyristor Controlled Power Supplies

Thyristor Controlled Power Supplies

Mechanical and electrical modifications to standard modules are available. In addition, Schaefer can design and manufacture fully custom solutions. Let Schaefer be your Custom Power Supply Design Solution Partner.

The thyristor-controlled power supplies and battery chargers present the conventional method of rectifying and controlling electric power. The advantages of thyristor-controlled units a given by a simple technical concept resulting in robustness and reliability.

AC/DC Power Supplies & Battery Chargers from 500W to 500kW


1-phase Input voltage: 115 / 230V AC, single phase, 50 / 60Hz


3-phase Input voltage: 200/ 400/ 480/ 690V AC, 3-phase, 50 / 60Hz


Output voltage: 12 / 24 / 48 / 60 / 72 / 110 / 220 / 360V


Output current: up to 3250A


Output power: 500W – 500kW


Features

  • Robust design
  • High reliable
  • 6-pulse performance
  • Optional: 10% input current distortion for 12-pulse charger
  • Turn Key solution
  • Constant current & voltage operation
  • Industrial grade components
  • High level of humidity protection Concise & clear indication panel
