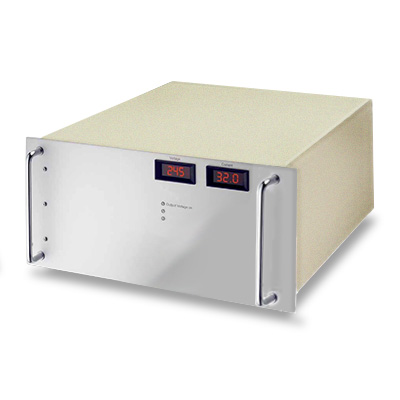

CW BW 5500

Mechanical and electrical modifications to standard modules are available. In addition, Schaefer can design and manufacture fully custom solutions. Let Schaefer be your Custom Power Supply Design Solution Partner.

15000W DC/DC Converters, AC/DC Converters and Battery Chargers. The DC/DC Series boasts 5 DC input ranges of 80-160, 160-320, 320-380, 320-640 and 450-800V with 8 single output voltages ranging from 23VDC to 400VDC. The AC/DC Series offers the same range of output voltages from 3-Phase VAC input. The Battery Charges provides output voltages ranging from 24VDC to 290VDC.

Max Power: 15000 W

AC Input: 3-Phase 3×200/3×400/3×480

DC Output Voltage: 23-800

19″ Rack/ Module: 5U

Wallmount: Yes

Cooling/Product Features: Water Cooled
