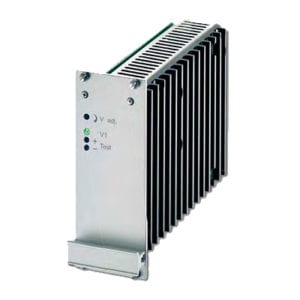

CH/ CP/ BP 200 Series

Mechanical and electrical modifications to standard modules are available. In addition, Schaefer can design and manufacture fully custom solutions. Let Schaefer be your Custom Power Supply Design Solution Partner.

150W DC/DC Converters, AC/DC Power Factor Corrected Converters and Power Factor Corrected Battery Chargers. The CH200 DC/DC Series boasts 5 DC input ranges of 18-36, 36-75, 45-90, 80-160, 160-320V with 10 single output voltages ranging from 5VDC to 220VDC. The CP200 AC/DC Series offers the same range of output voltages from a power factor corrected 100-240VAC input. The BP200 Series of Battery Charges provides output voltages ranging from 12VDC to 290VDC.

Max Power: 150 W


AC Input: 1-Phase (PFC)


DC Output Voltage: 5-250


19″ Rack/ Module: 3U


Chassis: Yes


DIN Rail: Yes


Cooling/Product Features: Natural Convention
