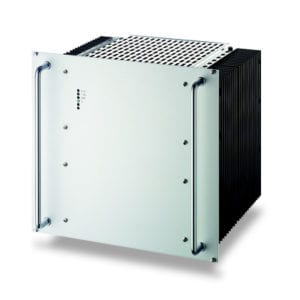

C/B 4800

Mechanical and electrical modifications to standard modules are available. In addition, Schaefer can design and manufacture fully custom solutions. Let Schaefer be your Custom Power Supply Design Solution Partner.

5000W DC/DC Converters, AC/DC Power Factor Corrected Converters and Power Factor Corrected Battery Chargers. The DC/DC Series boasts 9 DC input ranges of 10-16, 20-32, 40-64, 50-80, 80-160, 160-320, 320-380, 320-640 and 450-800V with 10 single output voltages ranging from 11VDC to 400VDC. The AC/DC Series offers the same range of output voltages from 100-240VAC input. The Battery Charges provides output voltages ranging from 12VDC to 290VDC.

Max Power: 5000 W


AC Input: 115 / 230VAC, single phase or 200 / 400 / 480VAC, three phases)


DC Output Voltage: 11-400


19″ Rack/ Module: 6U


Wallmount: Yes


Cooling/Product Features: Natural Convention
